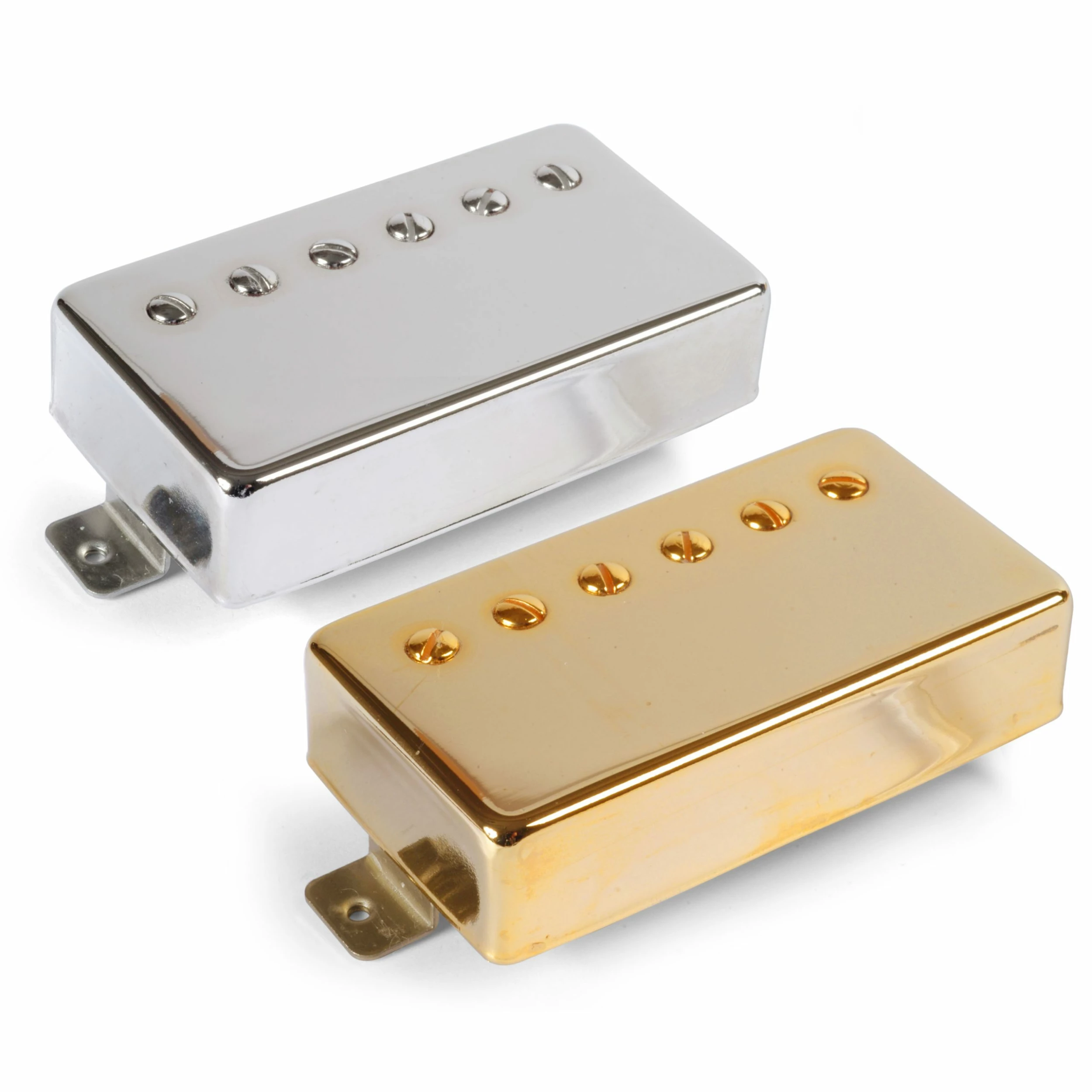

StewMac Parsons Street Humbucker Pickups

Straight-up raw vintage tone! Closely modeled after outstanding original P.A.F.s, these humbuckers capture the tone that changed music forever.

Crafted by tone experts
Our own Erick Coleman tracked down priceless original P.A.F. humbucker sets and meticulously studied the materials and construction that gives these pickups their truly timeless tone. Once he cracked the code, that tone was undeniable!

We christened these exceptional humbuckers in tribute to the famous Kalamazoo address where the holy grail of pickups, the legendary P.A.F. (Patent Applied For), was born.

We build them like they used to!
Just like the originals, the slug coil has more windings than the polepiece coil, and both coils are unpotted. Old P.A.F.s weren’t made in separate neck and bridge-position models, and their DC resistance varied from 7-9K ohms. We give you a choice: Parsons Street neck position pickups are wound to mid 7K range, and bridge position models to low 8K range.

Specifications

• Vintage medium output humbukcer
• Nickel-silver cover for tone transparency
• Original 1.970″ (50mm) polepiece spread (neck and bridge)
• Plain enameled 42 AWG coil wire
• Unpotted like the originals

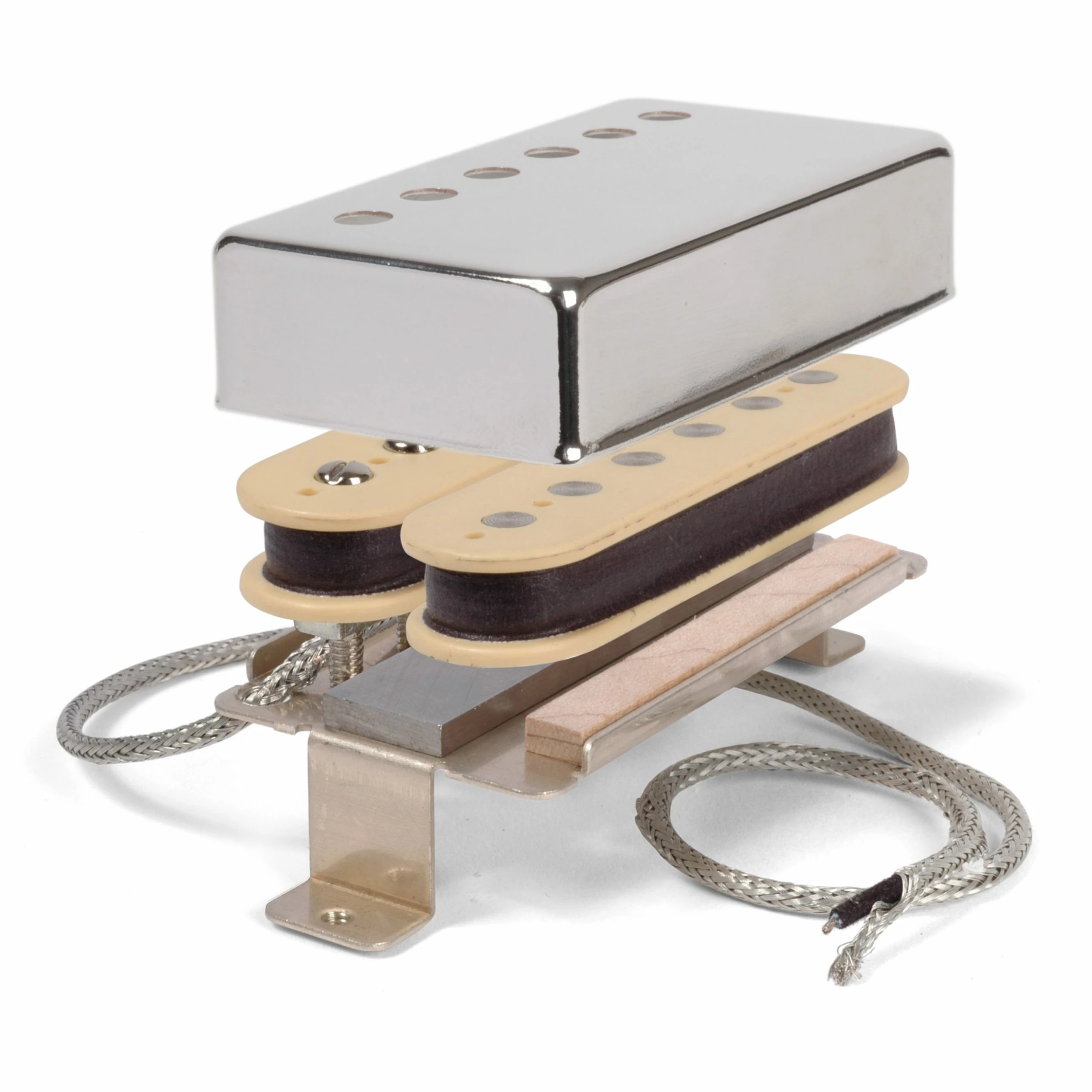

• Vintage construction—black paper coil tape, wood spacer, nickel-silver baseplate
• Choice of Alnico 2 or Alnico 5 magnet
• Single-conductor braided shield lead wires

Your choice of original-style magnets:

• Alnico 2 for warm tone with smooth highs and a soft bottom response.
• Alnico 5 produces a clear tone with more pronounced highs and a tighter low end.

(Original P.A.F.s contained Alnico 2, 3 and 5 magnets at various times.)

Output

• Neck positon: 7K ohm range
• Bridge position: 8K ohm range

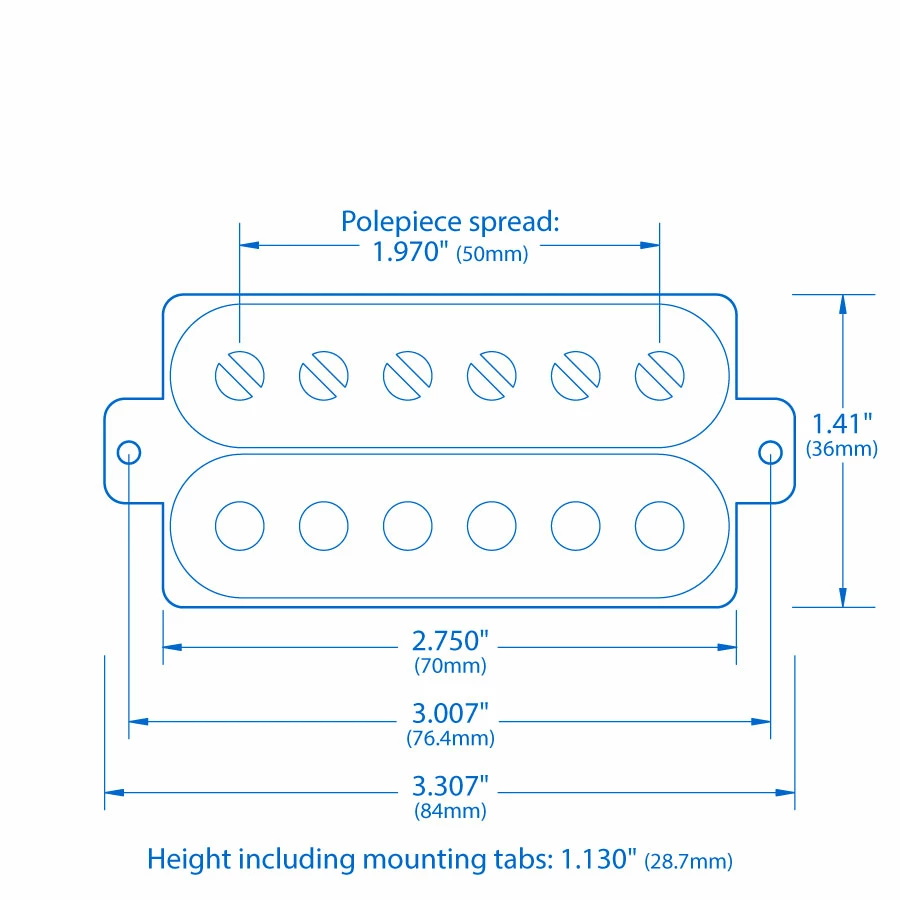

Dimensions

• Length including mouting tabs: 3.307″ (84mm)
• Length not including mouting tabs: 2.750″ (70mm)
• Mounting screw spacing: 3.007″ (76.4mm)
• Width: 1.41″ (36mm)
• Height including mounting tabs: 1.130″ (28.7mm)

Height adjustment screws, springs and wiring diagrams included.

Mounting rings and mounting ring screws are available separately.

Handy Humbucker Helpers make installation easy.
