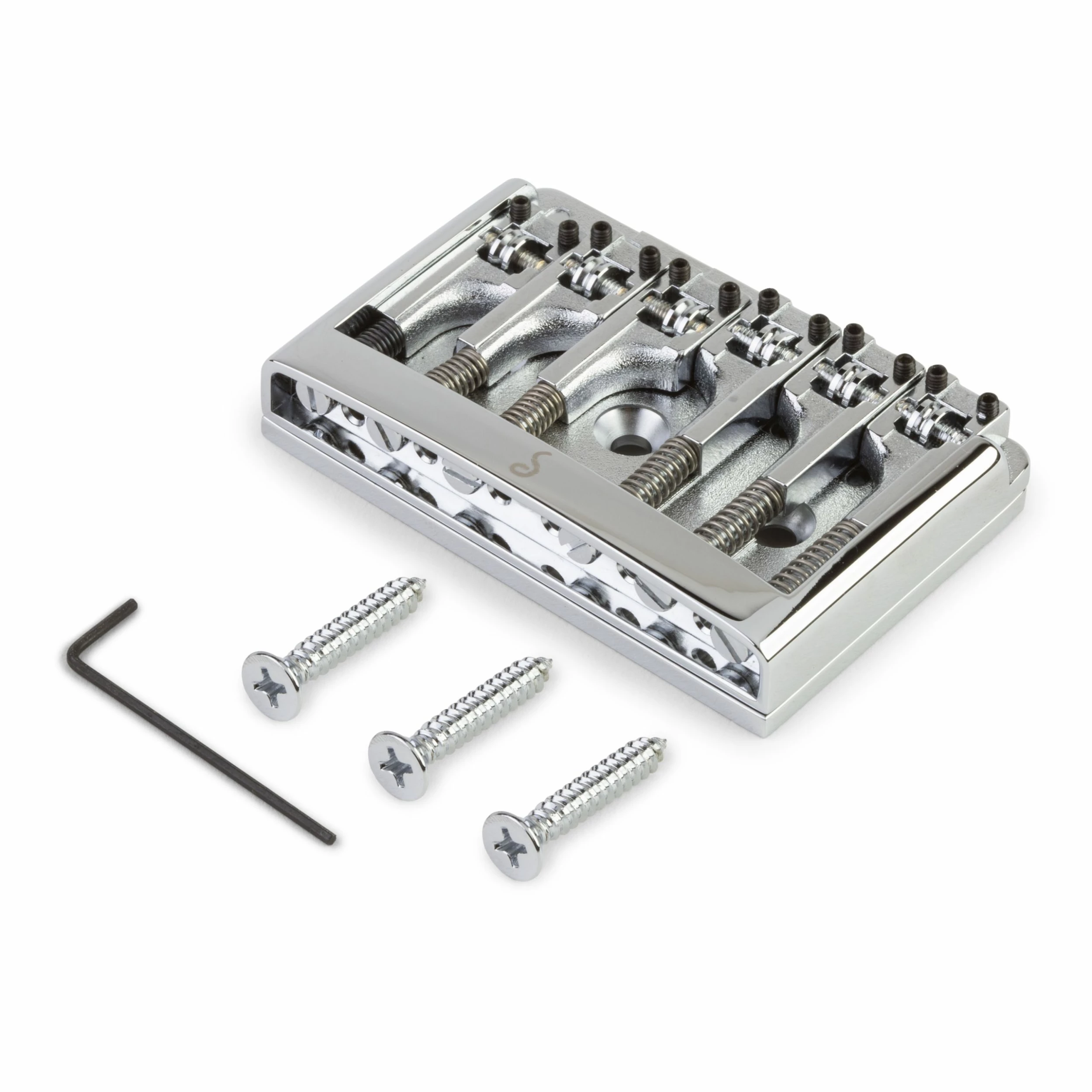

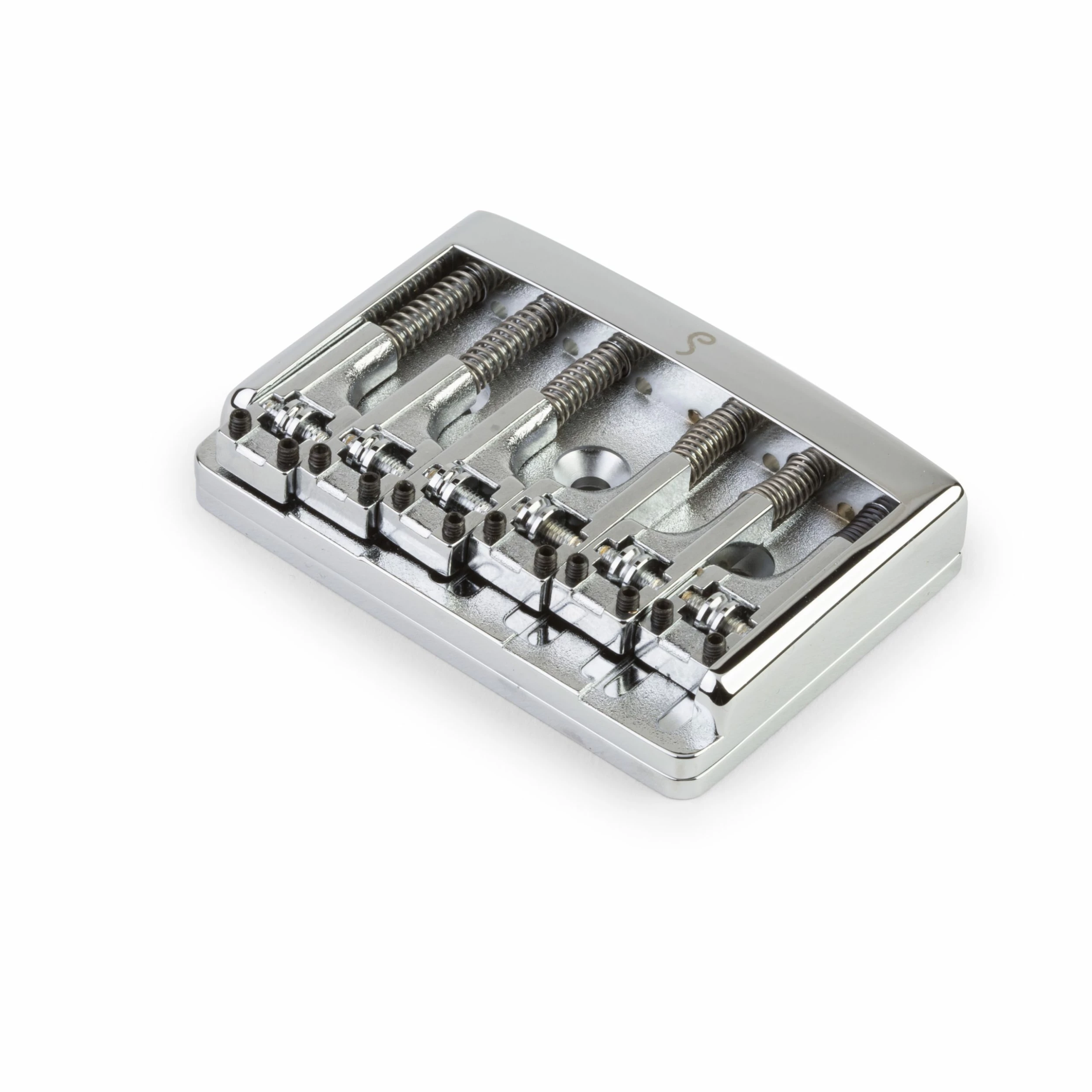

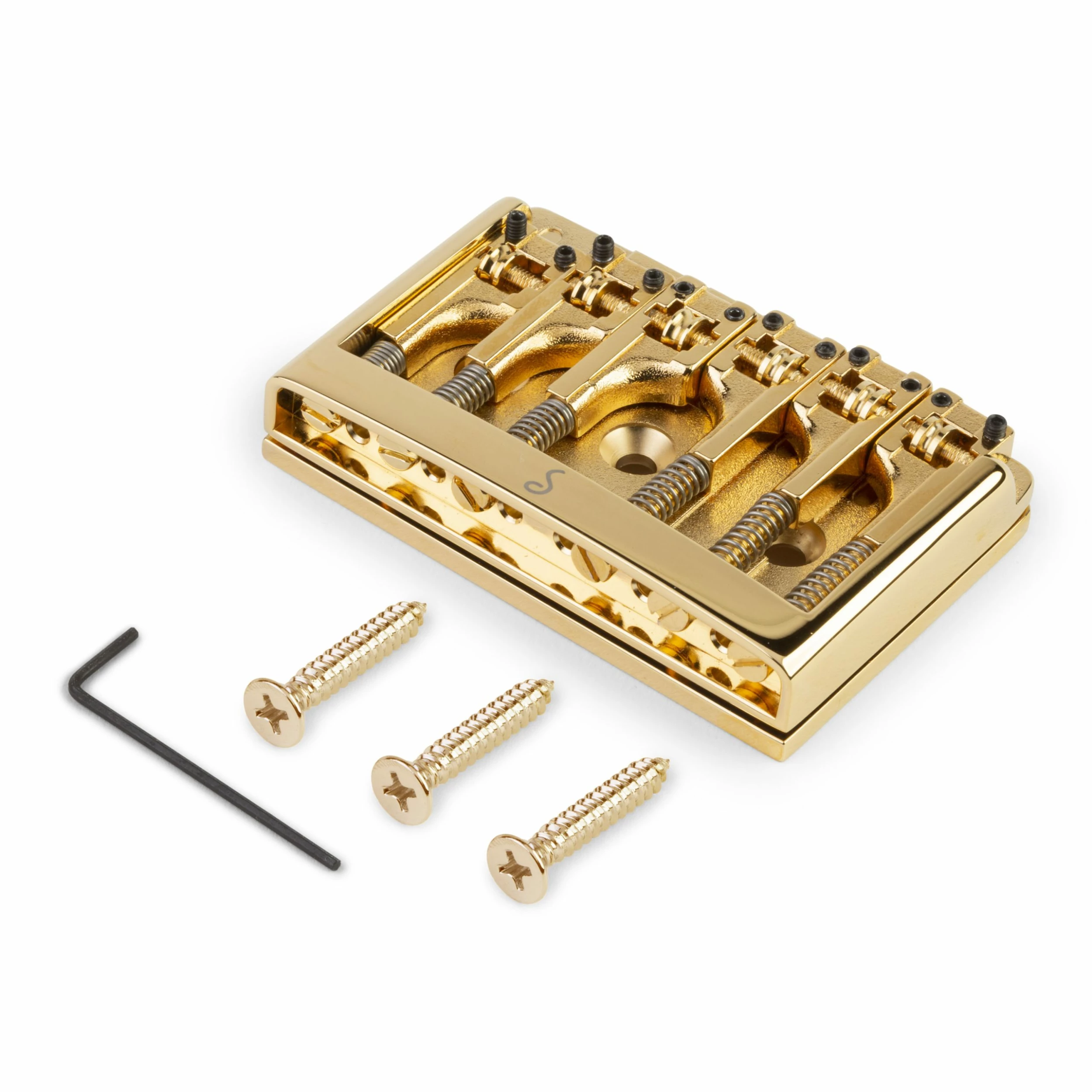

Schaller Non-Tremolo Roller Bridge
A highly adjustable non-trem Strat inspired bridge that doesn’t require through body stringing or string grommets.
Low-friction roller saddles adjust for intonation and height, and for string spacings from 2″ to 2-3/16″ (50.80mm to 55.56mm). The strings mount at the rear of the bridge. Screws included.

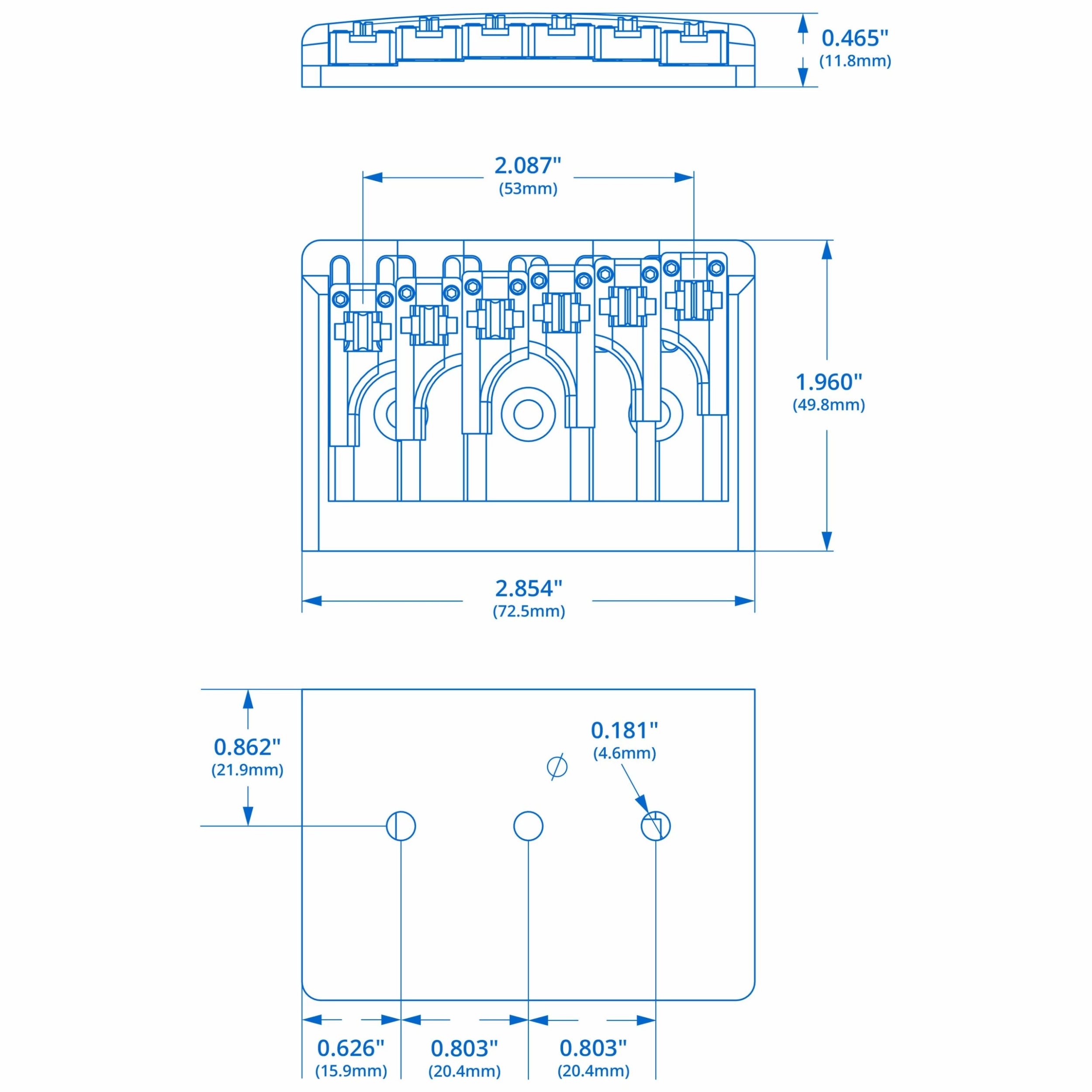

The saddles and the 2-13/16″ x 1-15/16″ (71.44mm x 49.21mm) baseplate are brass. A removable 1/8″ (3.00mm) spacer is included for raising the baseplate height if needed. Use a .050″ allen wrench to adjust the saddle heights from 3/8″ to 17/32″ (9.53mm to 13.49mm) from the guitar body (E string positions).
Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.
Find bridge placement for any scale with our free online tool fret position calculator.
-
- Item #
- Weight
-
- 0577
- 0.4340 lbs. (0.20 kg)
-
- 0577-B
- 0.4340 lbs. (0.20 kg)
-
- 0577-G
- 0.4340 lbs. (0.20 kg)
