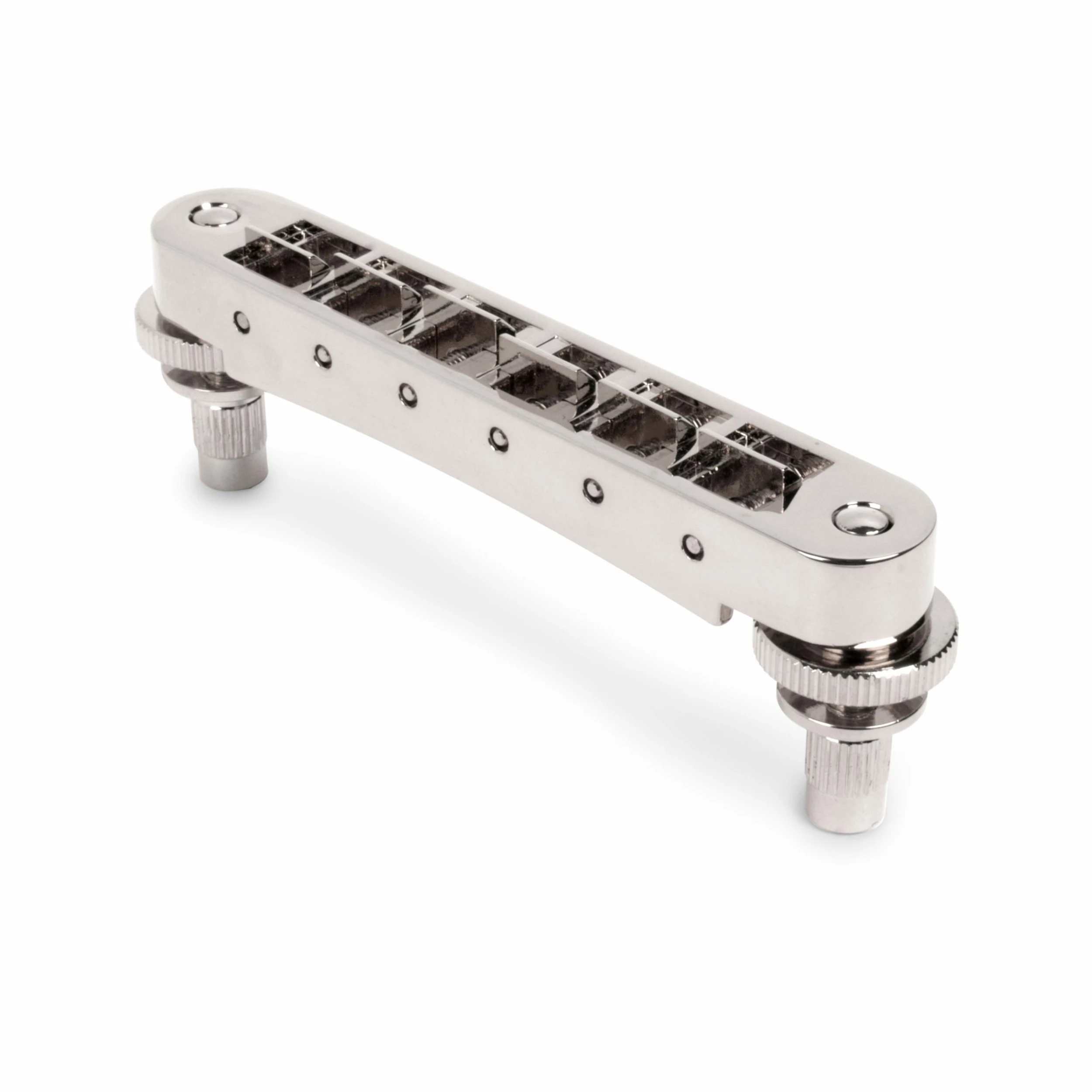

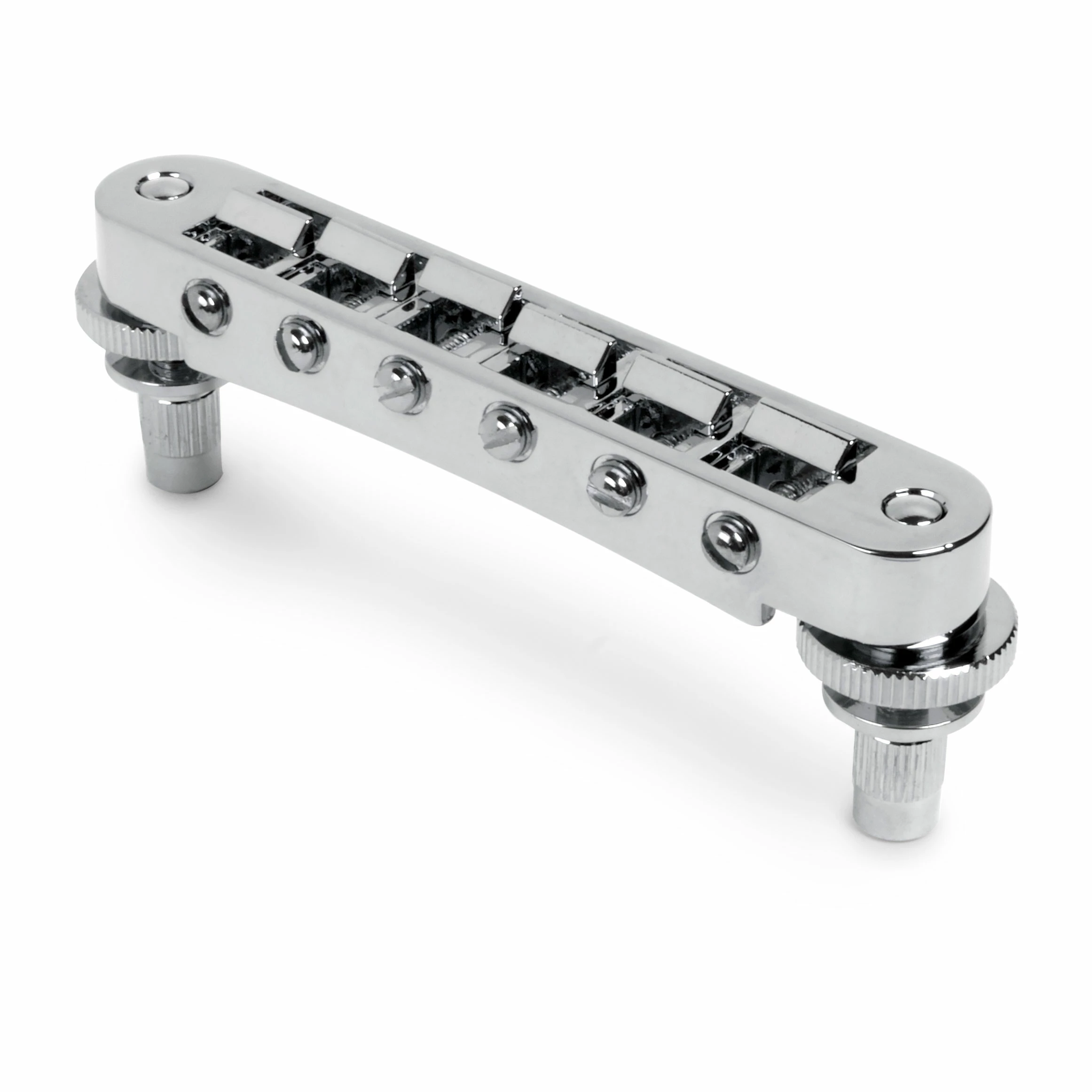

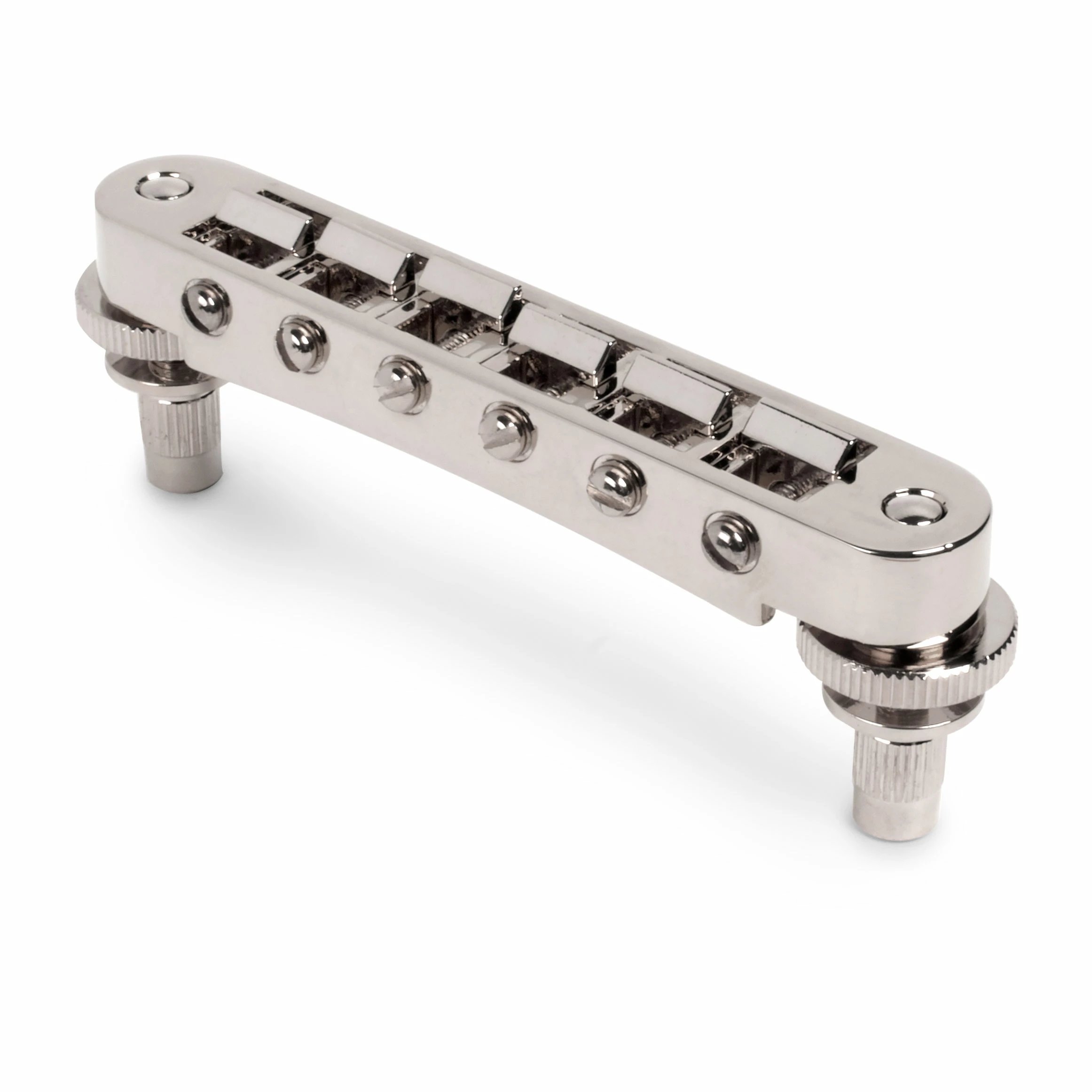

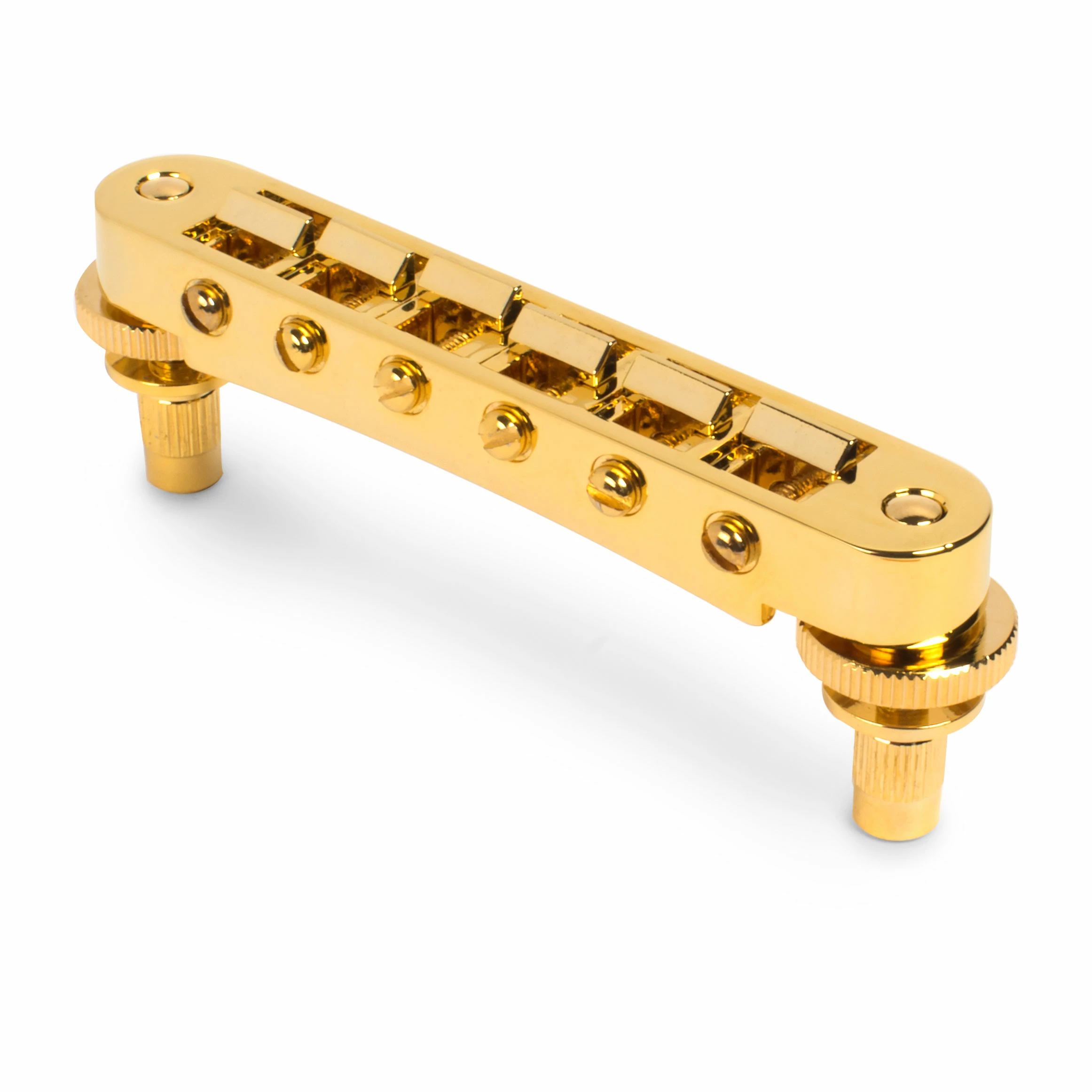

Nashville Tune-o-matic Bridge
The adjustable bridge design found on current Gibson® solidbodies, with unnotched saddles with individual saddle screw retainer clips.
Thumbwheel height-adjustment studs and bushings are included.
Use a 1/4″ drill bit to install the bushings.

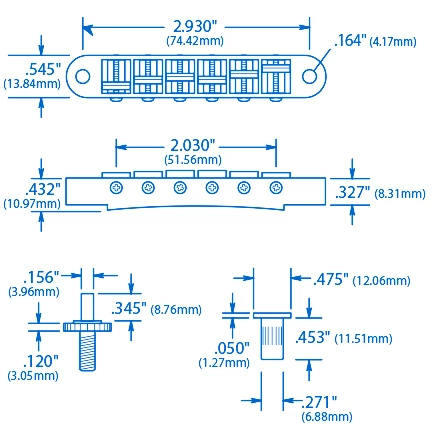

| String spread |
|
Saddle radius |
|
Post spacing |
|
Post threads |
| 2-1/32″ |
|
12″ |
|
2-15/16″ |
|
M5 x .8 |
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
Find bridge placement for any scale with our free online tool fret position calculator.
Tip: Slotting Tune-o-matic style saddles
Nut slotting files work great for metal saddles. Choose your file size as you would when slotting a nut: use the same gauge as the string, or a few thousandths larger. After filing to the desired depth, we suggest polishing the slot with Mitchell’s Abrasive Cord to remove file marks and burrs.
-
- Item #
- Weight
-
- 4502
- 0.1552 lbs. (0.07 kg)
-
- 4502-G
- 0.1540 lbs. (0.07 kg)
-
- 4502-N
- 0.1630 lbs. (0.07 kg)
