Carbide Upcut and Downcut Inlay Router Bits – Set of 10

Get every bit you need for precise inlay, saddle routing, and more!
We’ve put together the ultimate set of bits for uncompromising building and repair work.

We use upcut and downcut bits extensively in our shops. Our team of builders and techs collected the bits we use every day for building, repair, and CNC work and combined them into this handy set. They use a standard 1/8″ shank and can be used with both Dremel and Foredom tools, routers and laminate trimmers, and CNC machines with the appropriate size collet.

Make your jobs easier with these high-quality bits!

Upcut Bits cut a very clean bottom to the rout, with some fuzz around the top. These work well with harder woods like maple and ebony. We use upcut bits for jobs like saddle slot routing and clearing the insides of larger inlay routs like block inlays. They’re ideal for deeper routs that need better chip removal. The smaller bits are perfect for cleaning out old glue and grime from fret slots.

Downcut Bits cut a very clean top edge of the rout with some fuzz around the bottom. These are perfect for jobs like cutting purflings and soundhole rosettes on softer woods like spruce and mahogany. We also use them for cutting inlay routs where you want a clean top edge with less possibility of grain tear out.

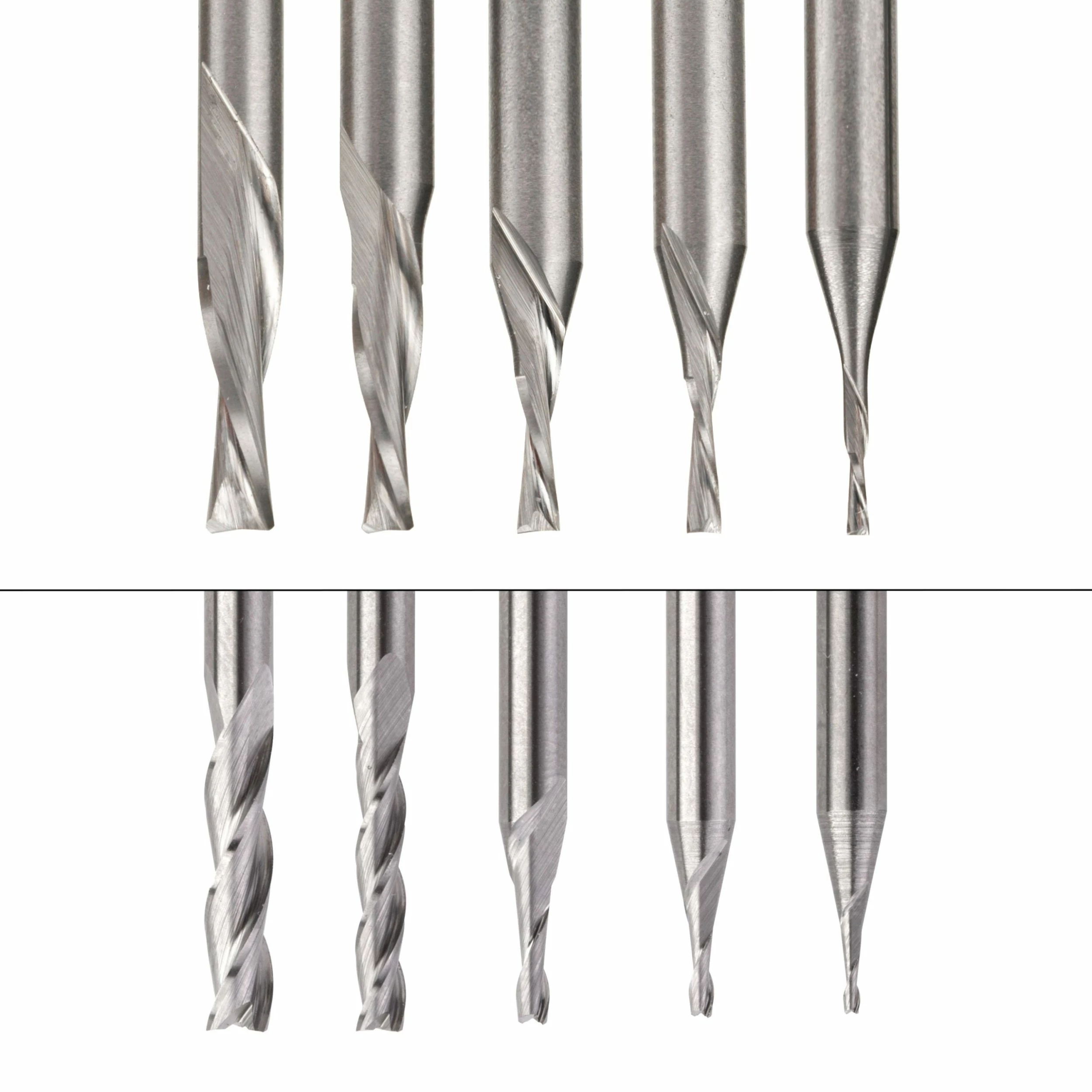

Set includes all 10 bits:
Bit sizes:
Length: 1-1/2″ (38.10mm)
Shank diameter: 1/8″ (3.18mm)

Downcut bits included: Also sold separately
#5154: 1/8″ dia. bit for routing bridge saddle slots
Width: 1/8″ (0.1250″, 3.18mm)
Depth: 3/8″ (0.375″, 9.53mm)

#5153: 3/32″ dia. bit for routing bridge saddle slots
Width: 3/32″ (0.0938″, 2.38mm)
Depth: 1/4″ (0.250″, 6.35mm)

#5152: 1/16″ dia. for fine detail routing
Width: 1/16″ (0.0625″, 1.59mm)
Depth: 3/16″ (0.188″, 4.78mm)

#5151: 3/64″ dia. for fine detail inlay routing
Width: 3/64″ (0.0469″, 1.19mm)
Depth: 1/8″ (0.125″, 3.18mm)

#5150: 1/32″ dia. for fine detail inlay routing
Width: 1/32″ (0.0313″, 0.79mm)
Depth: 1/8″ (0.125″, 3.18mm)

Upcut bits included: Also sold separately
#5377: 1/8″ dia. bit for routing bridge saddle slots
Width: 1/8″ (0.1250″, 3.18mm)
Depth: 3/8″ (0.375″, 9.53mm)

#5376: 3/32″ dia. bit for routing bridge saddle slots
Width: 3/32″ (0.0938″, 2.38mm)
Depth: 1/4″ (0.250″, 6.35mm)

#5375: 1/16″ dia. for fine detail routing
Width: 1/16″ (0.0625″, 1.59mm)
Depth: 3/16″ (0.188″, 4.78mm)

#5374: 3/64″ dia. for fine detail inlay routing
Width: 3/64″ (0.0469″, 1.19mm)
Depth: 1/8″ (0.125″, 3.18mm)

#5373: 1/32″ dia. for fine detail inlay routing
Width: 1/32″ (0.0313″, 0.79mm)
Depth: 1/8″ (0.125″, 3.18mm)

To use our 1/8″ shank bits in a 1/4″ collet, see our Adapter Collet.
