Bigsby B5 Vibrato

Original equipment on famous guitars for half a century.
Model B5 is designed for flat-face solidbody guitars.

Mount a Bigsby® without drilling your guitar, and SAVE!
When you order a Bigsby with matching Vibramate.®

Bigsby® Vibrato Tailpieces

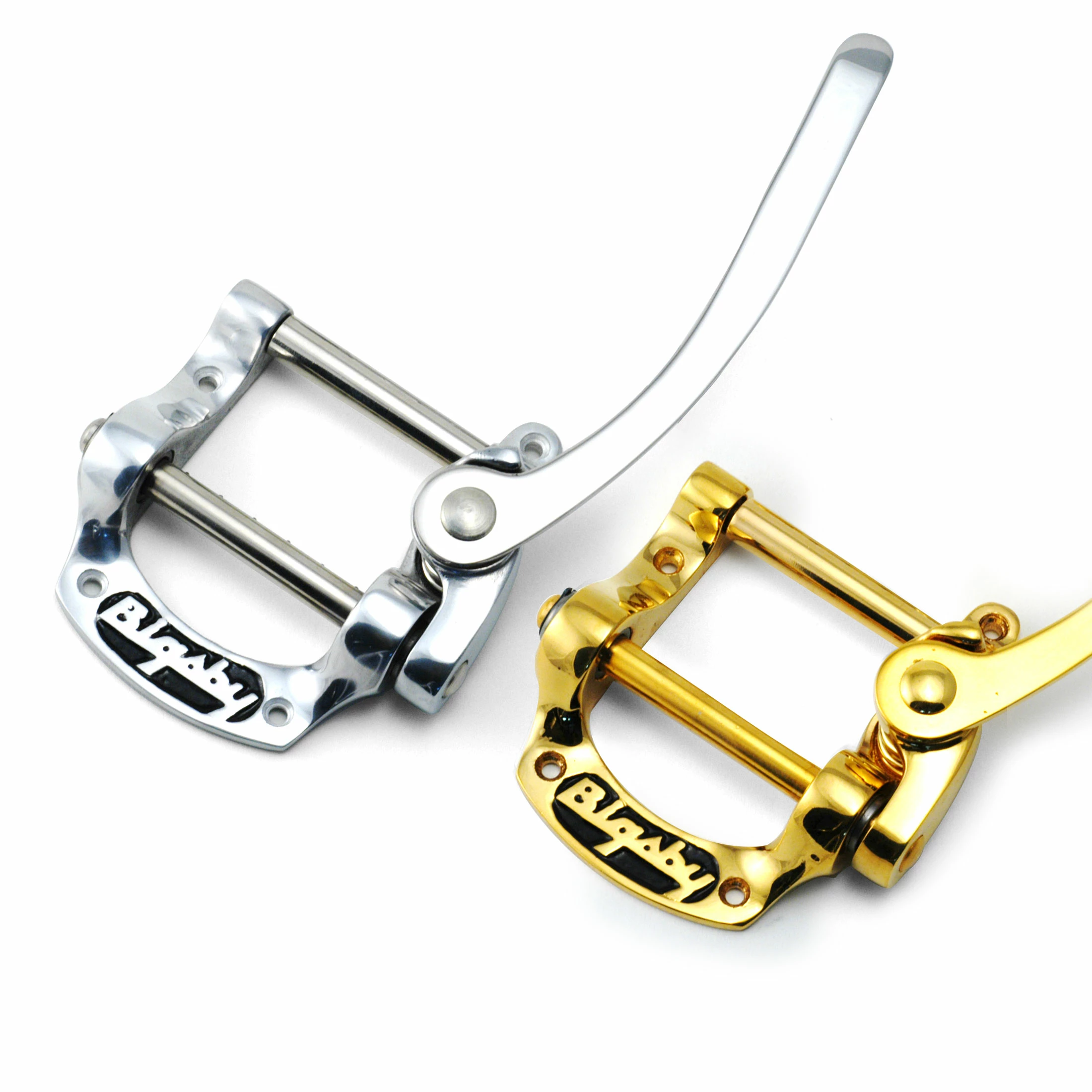

Original equipment on famous guitars for half a century. The legendary hand-assembled Bigsby vibrato features a string mounting bar floating on low-friction needle bearings, for accurate return to pitch. Each model has a sand-cast aluminum frame and stainless steel arm.

Bigsby B5 Vibrato: For flat-face solidbody guitars. Attaches to the top of the guitar with four supplied screws. The base of the vibrato is 4-1/4″ long x 3-5/8″ wide. 2-1/16″ rear mounting screw spread; 2-3/4″ front mounting screw spread.

Though a Bigsby B5 vibrato can be installed on a carved-top Les Paul or thin-archtop ES-335 style guitar, the back of the unit may appear slightly raised. For a Les Paul, see the Bigsby B7 with Vibramate V7-LP Adapter instead.

Vibramate® Adapter Kits for Bigsby Vibratos
The Vibramate V5 Adapter uses your guitar’s stop tailpiece bushings for easy, secure Bigsby installation with just a screwdriver. No drilling! For B5 Bigsbys only.

For guitars with U.S. or metric stop tailpiece mounting bushings that have standard 3-1/4″ (82.55mm) non-staggered spacing.
Fits most solidbody and thin archtop guitars with a Tune-o-matic style bridge.
Felt pads protect the guitar’s finish.
Made of high grade polished aluminum for stability and tone.

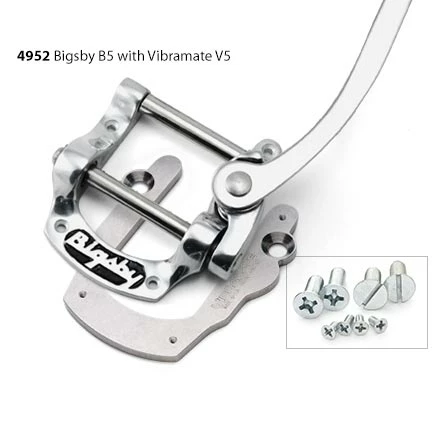

Bigsby B5 with Vibramate V5 fits flat-face solidbodies. This B5/V5 combination won’t fit a classic large-pickguard SG, or a Flying V (order the Short Tail kit).

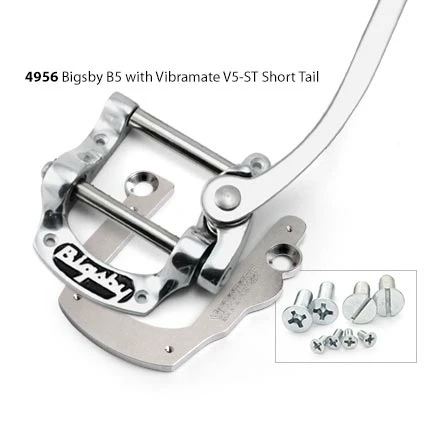

Bigsby B5 with Vibramate V5-ST Short Tail has clearance for large pickguards on classic SG® solidbodies.

Vibramates are also sold separately.
